Electric Hoist

Unparalleled Electric Hoist Expertise

Our team of experienced professionals possesses in-depth knowledge of electric hoists, enabling us to provide expert guidance in selecting the ideal hoist for your specific lifting requirements. Whether you need a compact and portable hoist for light-duty applications or a heavy-duty hoist for demanding industrial environments, we have the expertise to match you with the perfect solution.

Extensive Inventory for Prompt Delivery

We maintain a well-stocked inventory of most standard-design electric hoists, allowing us to offer our customers swift and convenient delivery timescales. This commitment to prompt delivery ensures that you receive the equipment you need without any unnecessary delays, minimising downtime and optimizing your operations.

Electric Chain Hoist

Overview of Our Options

The hoists we offer to our customers within our range of lifting equipment has been carefully selected for their industrial quality, safety records, ease of maintenance and diverse range of features.

Stahl Electric Chain Hoist

Stahl Crane Systems is a global leader in lifting equipment design and manufacture, with a history dating back over 140 years.  Our Stahl range of electric hoists boast some of the most diverse design features available on the market.



ST Series - Our standard Stahl hoist range which will suit most customer’s applications, boasting electro plated load chain, compact design, slipping clutch overload device and low maintenance schedules.  With capacities ranging from 125 kg to 6300 kg and numerous mounting configurations including hoist and trolley combinations with various operating speeds available.



STK Series - Electric Chain Hoist with Ultra Low Headroom Design Trolley.  The body of the chain hoist is mounted at an angle, meaning that no return chain sheave is required, thereby allowing a 33 % reduction in the closed hook height headroom. The distance from the underside of the beam to the bed of the hook is just 210 mm at a load capacity of 5,000 kg and even further reduced to 185 mm at a load capacity of 3,200 kg. The patented chain drive with two separate, but synchronised chains is unique.

Stahl Chain Hoist Options Available

• Stainless Steel Load Chain
• Stainless Steel Load Hook
• Corrosion resistant paint finish
• PTC Thermistor for electric hoist motors
• ATEX Explosion Proof Design for Zone 1, Zone 21 and Zone 22
• Fast lifting speeds
• Radio Remote Control
• Long Lifting Heights
• Manual and electric motor trolleys
• Locking load hook assembly
• IP66
• Special Voltages e.g. 460v 3Ph, 500v 3Ph or 550v 3Ph


We have electric hoist options with twin lifting hooks, integral low headroom motor trolleys, trolleys designed for curved beams and a model specifically designed for lifting big bags, generally in the pharmaceutical industry or other production environments.



Yale Electric Chain Hoist

The Yale range of hoists are extremely versatile and offer low cost spare parts for reduced maintenance budgets - they are ideal for numerous applications in general industry. Our selection has a range of features including long service life, quieter operation, improved load safety and an easy access control panel.

Yale is part of the Columbus McKinnon Corporation with 140 years of experience. The CMCO range of electric hoists are instantly recognisable and are well respected for their quality within the lifting equipment industry.

Hoist and Winch Limited are a Yale master distributor and we like to pass on some of our special discount rates to our customers.

We can offer the full range of Yale electric chain hoists including the popular industrial quality CPV electric hoist. The CPV or CPV/F Yale hoist comes in lifting capacities up to 5 tonnes.

The yale CPV & CPV/F series of electric hoist have recently increased their safe working load and now incorporate a 2.5 t & 5 t swl electric hoist model.

We also supply the CPE range of electric hoists which boast safe working loads up to a an impressive 10 tonnes. The Yale CPS is the smallest hoist weighing in at just 12kg making it very easy to handle and transport. The CPS hoist comes with safe working loads of 125 kg and 250kg.

The Lodestar is the market leading and world renowned CMCO single phase hoist for 110 v or 230 v 1 Phase, unit known for its robust design even in the most demanding of applications.

Designed to perform in some of the most extreme conditions, our Kito range is known for its high speed, unmatched durability, easy serviceability and advanced hoist technology, including such features as ergonomic hoist lifting and lowering control on dual speed hoists, and with a 10 year manufacturer’s warranty on the hoist brake this should give any customer total confidence in their purchase from a lifting equipment suppliers Hoist and Winch Limited.



Liftket Electric Chain Hoist

Electric chain hoists to match your requirements at any industrial height. Meeting any industrial demand with the help of our series production of high developed modular electric chain hoists. Our electric chain hoists “Made in Germany” are developed and manufactured locally by our team. A wide range of options and load capacities up to 25,000kg leave nothing to be desired. The products are available worldwide thanks to an international network of hoist professionals.



General Features to consider When Selecting an Electric Chain Hoist and/or Trolley for your Application

Power Supply

Is there a suitable electrical power supply to the hoist location?

Standard power supplies held in our UK Stock; 400v 3Ph 50HZ, 230v 1Ph 50HZ and 110v 1Ph 50Hz



Hoist Capacity, Swl or Maximum load to be lifted

With the Hoist and Winch range of electric chain hoists offering lifting capacities from 125 kg through to 25 t swl we are certain we have a suitable product for your application. The safe working load (Swl) of a hoist unit is a fundamental specification requirement, and although a hoist unit is designed to lift to its maximum Swl, as with all good practices we would suggest selecting the next size hoist up if the application allows to increase the service life of your new chain hoist.



Lifting Height

This is determined from the position where the hoist unit is installed to ground level (Load pick up). As with all good practices the load hook should reach the floor for when service and maintenance work is carried out by a suitably trained component person.



Fixed Position Suspension Or Trolley

Does the application call for a stationary fixed position lift or travel along a monorail beam?

For fixed suspension we can offer; Lug mounted, top hook suspension or foot mounted

Regarding monorail travel along an universal beam we can offer manual push/pull trolley, hand geared trolley or electric powered trolley.

Our Sales team will always request the beam width, but usually this information can follow if the enquiry proceeds to order placement.



Other Points to Consider

• Is single speed or two speed operation required?
• What hoist operating speeds does the process require?
• What is the application? as this will determine what hoist motor duty is required.
• Environment; is the equipment required to be used indoor, outdoor, offshore or explosion risk ATEX environment
• Is a chain container required for hoist load chain?
• Planned maintenance, ease of working on the equipment.
• Would PTC Thermistors be required for the hoist motor?
• Radio Remote control rather than fixed hard wired pendant.



Premium Electric Hoist Brands at Your Fingertips

Our comprehensive selection of electric hoists features premium brands renowned for their exceptional quality, durability, and performance. These brands include:

Yale: A global leader in material handling solutions, Yale electric hoists are renowned for their robust construction and innovative features.

Stahl: A pioneer in electric hoist technology, Stahl hoists are known for their exceptional reliability and user-friendliness.

Columbus McKinnon: With a rich heritage of innovation, Columbus McKinnon electric hoists are engineered to meet the most demanding lifting requirements.

Kito: A specialist in compact and lightweight electric hoists, Kito hoists are ideal for applications where space is limited.

Donati: A leading manufacturer of high-performance electric hoists, Donati hoists are engineered to provide exceptional lifting capacities.

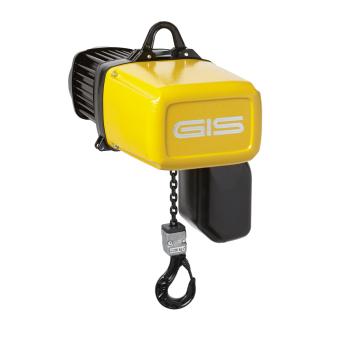

GIS: A renowned producer of high-quality electric hoists, GIS hoists are known for their versatility and adaptability.

Demag: A global leader in industrial lifting equipment, Demag electric hoists are synonymous with superior performance and reliability.

RWM: A specialist in heavy-duty electric hoists, RWM hoists are designed for the most demanding industrial applications.

Hadef: A pioneer in electric hoist technology, Hadef hoists are known for their innovative features and exceptional durability.

Verlinde: A leading manufacturer of electric hoists and cranes, Verlinde hoists are engineered to provide maximum efficiency and safety.

Liftket: A specialist in compact and lightweight electric hoists, Liftket hoists are ideal for applications where space is limited.

Tractel: A global leader in material handling solutions, Tractel electric hoists are renowned for their exceptional quality and versatility.



Partner with Hoist and Winch Ltd for Your Electric Hoist Needs

At Hoist and Winch Ltd, we are dedicated to providing our customers with the best possible electric hoist solutions, backed by our extensive knowledge and commitment to customer satisfaction. Contact us today to discuss your specific lifting requirements and discover how we can help you elevate your operations to new heights.



Contact our sales team: [email protected]

Frequently Asked Questions

What is an electric hoist?
An electric hoist is a powered lifting device that uses an electric motor to raise, lower and move loads. It is commonly used in workshops, factories, construction sites, and warehouses for efficient material handling.

How does an electric hoist work?
Electric hoists use an electric motor to drive a gearbox, drum, and wire rope or chain mechanism. When activated, the motor winds or unwinds the rope/chain to lift or lower the load.

What are the advantages of electric hoists over manual hoists?
Electric hoists offer faster lifting speeds, reduced manual effort, higher capacity options, precise control, and better suitability for frequent or heavy-duty lifting compared with manual hoists.

What load capacities do electric hoists come in?
Electric hoists are available in a wide range of lifting capacities, from a few hundred kilograms up to several tens of tonnes, depending on the model and manufacturer.

What types of electric hoists are there?
Common types include chain electric hoists and wire rope electric hoists. Wire rope hoists are typically used for higher capacity and heavier industrial applications, while chain hoists are often used for lighter loads.

Where are electric hoists used?
Electric hoists are used in manufacturing, construction, warehouses, maintenance workshops, shipyards, automotive production lines, and anywhere heavy lifting or precision load placement is required.

What safety features should an electric hoist have?
Key safety features include overload protection, emergency stop controls, upper and lower limit switches, and thermal protection to prevent motor overheating.

How often should electric hoists be inspected?
Electric hoists should be visually checked before each use and undergo periodic inspection and servicing by a competent person, depending on usage frequency and regulatory requirements.

Can electric hoists be used in hazardous environments?
Some electric hoists are available with ATEX or explosion‑proof ratings for use in hazardous environments where flammable gases or dust may be present.

How do I choose the right electric hoist for my needs?
To choose the right electric hoist, consider load capacity, lifting height, duty cycle (frequency of use), installation type (trolley, fixed or overhead), environmental conditions, and available power supply.
