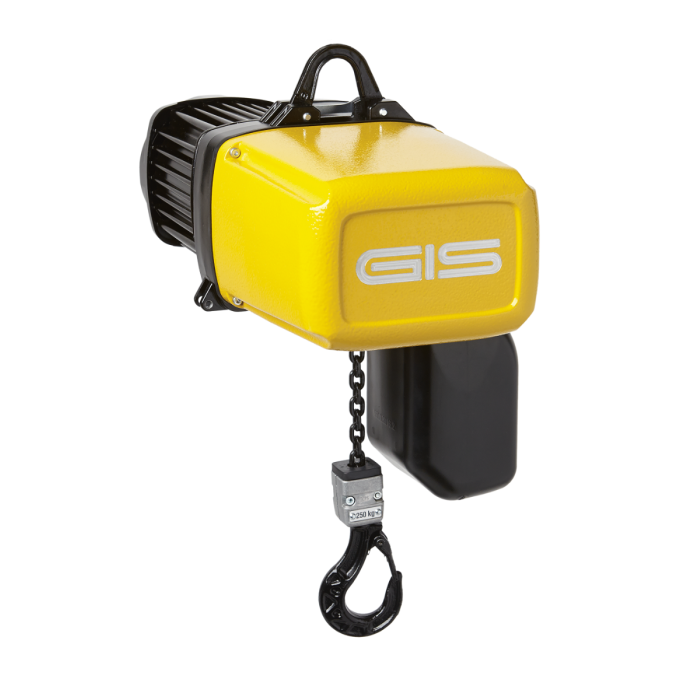

GIS Electric Hoist

GPM & GP Series

Capacities:- 250 kg to 6,300 kg Swl.

Models: GPM250, GP250, GP500, GP1000, GP1600, GP2500

Reliable and long-lasting

Chain safety factor minimum 8-times (DIN EN 14492 A5, ISO M5)
Protection class IP65 as standard

Easy to operate

60% higher lifting capacity
Quiet running with 3-step drive and helical gearing
Polygonal connections

Customer specific

Available in 3-Phase or 1-Phase
Controls: Low voltage, Direct control, special control, radio remote control or frequency inverter

Special versions such as:

  • synchronized electric chain hoist
  • low headroom design
  • corrosion resistant version



Standard version

Maximum load capacities (1 or 2 falls):
GPM250: 320 kg, GP250: 400/630 kg, GP500: 800/1250 kg, GP1000: 1600/2500 kg, GP1600: 2500/4000 kg, GP2500: 3200/6300 kg


Standard voltages:
3 × 400 V / 50 Hz, 3 × 230 V / 50 Hz
1 × 115 V / 50 Hz, 1 × 230 V / 50 Hz

42 V low voltage control
1 phase motor: 1 speed
3 phase motor: 1 or 2 speeds
Protection class IP65
Eyebolt suspension
Standard lifting height 3 m
Control cable length 1.8 m
Ergonomic control switch with emergency-stop
Control switch with external strain relief
Geared limit switches for highest and lowest hook position
Isolation class F (motor)
DC spring-loaded brake
Slipping clutch adjustable and not in the flow of forces



The GP is simple in its structure and does not contain any sensitive electronics, which minimizes the risk of operational  interruptions. It is characterised by quiet running and is made for longevity whilst working hard. The ergonomic control switch with 42 V low voltage allows convenient and safe working. Maintenance is easy, quick and needs no special tools.

Profile steel chain
The case hardened and manganese phosphated profile steel chain provides about 15% more capacity at an identical nominal diameter compared to the traditional round steel chain. The larger cross-sectional area reduces wear and increases the lifetime of the chain. The load hook with stable, guided hook latch and safety rubber buffer provides maximum safety.

Polygonal connections
The inner part of the modularly designed chain hoist embodies real innovation. All shaft-hub connections are built to a polygona. This allows significantly faster disassembly and assembly during maintenance.

Protection class IP65
A feature of the hoist and the control switch is theprotection class IP65. It is dust proof and protected against water jets. As it is compact and robust designed, the GP is best suited for dusty environments as well as for outdoor operation.

Pendant Control
The pendant control fits comfortably in your hand and is ergonomically designed. It is robust, impact resistant, safe to operate and controlled by 42 V low voltage. Push buttons placed in parallel increase the ease of operation. The external strain relief protects the control cable.



Accesories and optional Features available

  • Radio Remote control
  • Direct control
  • Frequency inverter
  • Worldwide operating and control voltages to suit customers regions
  • Non standard hoist and trolley operating speeds
  • Sinbgle hand operation hoist controls
  • Self locking load hook assembly
  • Geared Limit switches with two additional emergency stops
  • External mounted limti switches with muliple limiti switches
  • Parallel connection of multiple chain hoists
  • Operating data counter
  • Temperature monitoring to prevent the motor from overheating
  • Manual Brake Release
  • 2nd Hoist Brake
  • Special Grease for low temperature or Food Industry
  • Slack Chain Cut off switch
  • Encoder for Path measurement
  • Load Sensor for Digital load Readout Displays
