Hydraulic Chain Cutter

Suitable for Grade 80 and Grade 100 Chains up to 13 mm

Model: YCC

Manufacturer: Yale (Germany)

Chain Size: up to 13 mm diametre



Product Overview

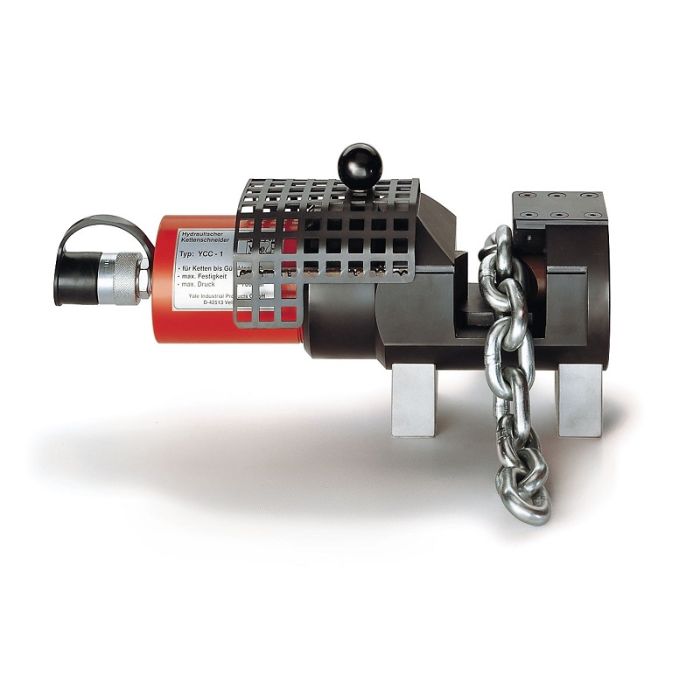

The "New" YCC-201 chain cutter.

This hydraulic chain cutter has been designed for cutting high-tensile, grade 10 chains up to a material diameter of 13 mm.

The open design allows easy positioning of the chain. The unit can be operated using the standard hand or motor pumps.

The cutting force is supplied via our standard single acting yale hydraulic cylinder: YS23/50, hydraulic cylinder included.

Recommended pumps:

Electric power pack model PY-04/2/5/2M

Hand Pump: HPS - 2/0.7

The return off the movable blade is preformed by the return spring of the hydraulic cylinder after relief of the hydraulic pressure. In combination with the PY-04/2/5/2M orHPS 2/0.7 the blade returns automatically.

The chain cutter has 2 blades, a 'fixed' blade and a 'moveable' blade. Both Blades are identical and interchangeable, with spare blades available and sold seperately.

The unit is also equipped with a unique chain support bar. this allows for perfect positioning of the chain link and leads to a much longer service life.



Features

  • Operating pressure max. 700 bar.
  • Max. cutting force: 23 t.
  • Cutting performance: 13 mm Ø (chain grade 10).
  • Max. opening of blades: 30 mm.
  • Dimensions (L x W x H): 310 x 140 x 180 mm.
  • Weight: 17 kg.
  • Built-in standard hydraulic cylinder.
  • Single-acting with spring return.
  • Durable, heat treated cutting blades easy replacement, blades can be re-sharpened.
  • Also useable for cutting full material.
  • Highly secured working through protection guard.
  • Ready to use, inlud. coupler-half, female.
