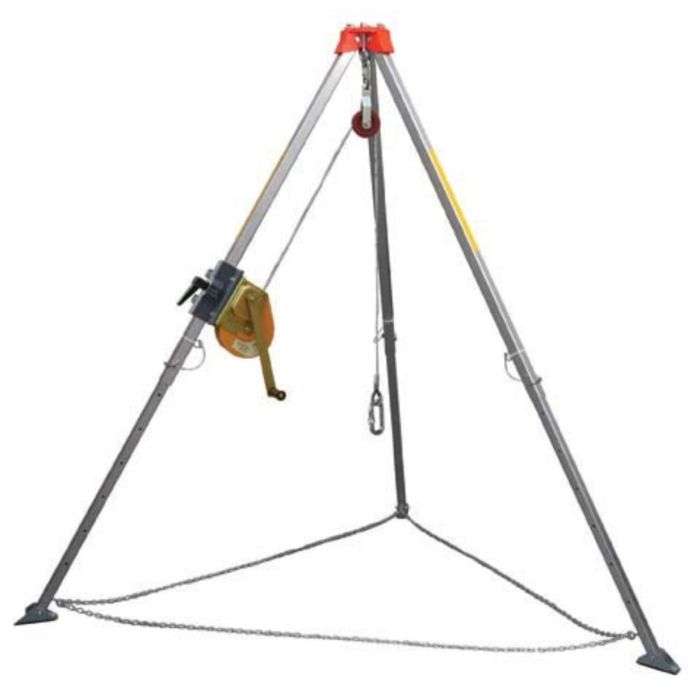

Rescue Tripod

Clamp on Design Rescue Winch available as an option.

Model: CMHTM9

Manufacturer: Yale (Germany)

Foot Print: 1660 mm to 2360 mm

Height to Underside: 1340 mm to 2300 mm

Closed Height: 1750 mm

WLL: 140 kg (Man-riding)


Product Overview

Our CMHTM9 Tripod is suitable for either man-riding or material lifting, if the equipment is to be used for material lifting then an alternative connector and pulley system is available at extra cost, please see pricing options.  This additional pulley system allows the tripod and winch combination to be used for maximum loads of 500 kg.
The construction of the tripod is compact and light weight and therefore offering a self-weight of just 17 kg, which makes this an ideal portable piece of height safety equipment.
Suitable for rescue applications, and can be used in conjunction with the Yale DRB rescue winch offering wire rope lengths of 20 metres or 25 metres.  Spare replacement wire rope ropes are available as an optional extra.
Rescue tripod, designed by Yale for confined space entry and rescue.  Integral Pulley wheel mounted at the top centre position, fully adjustable to suit a number of applications.

Our Yale Rescue Tripod conforms to EN 795 with all relevant certification supplied with the equipment.



  • Working load limit (WLL) 140 kg for man-riding and 500 kg material
  • Height to underside: 1340 - 2300 mm
  • Footprint diametre: 1660 to 2360 mm
  • Closed height: 1750 mm
  • Weight: 14.3 kg (Tripod) and 13 kg (Winch)
