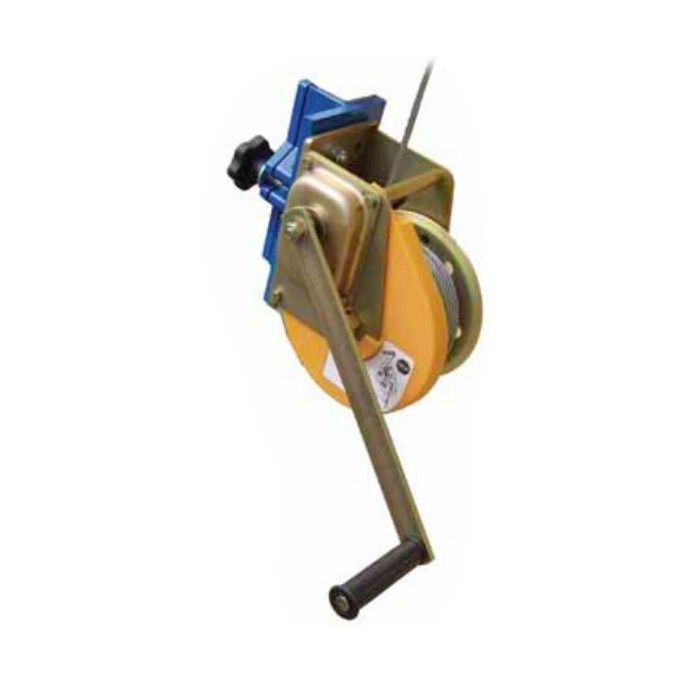

Rescue Winch

Confined Space Tripod Available As An Option

Model: DRB

Manufacturer: Yale (Germany)

Wire Rope Length: 20 metres and 25 metres

Rope Diametre: 6.3 mm

WLL: 140 kg (Man-riding)


Product Overview

Our DRB confined space entry and rescue winch and tripod system is ideal for vertical entry applications and where safety is paramount.
These items are suitable for either man-riding with a WLL of 140 kg, in addition alternative pulley system components can be purchased to convert the tripod into a confined space material handling product suitable for loads up to 500 kg.
The construction of the winch is compact and light weight and therefore offering a self-weight of just 13 kg, which makes this an ideal portable piece of height safety equipment.
The winch is available with either 20 metres or 25 metres of galvanised steel wire rope, and spare replacement wire ropes are available as an option.
Our Yale DRB tripod winch conforms to EN 1496 class B with all relevant certification supplied with the equipment.



  • With automatic brake c/w mounting bracket for Tripod Mounting.
  • Working load limit (WLL) 140 kg
  • Galvanised steel rope (diameter 6.3 mm).
  • Weight: 13 kg
