Screw Clamp with Two Anchor points

Ideal for Positioning Loads on Construction Sites or Metal Fabrication Workshops

Model: TSZ

Manufacturer: Tigrip (Germany)

Capacities: 500 kg, 1500 kg, 3000 kg, 5000 kg and 7500 kg Swl

Jaw opening: 0 - 40 mm (Depending on Swl)


Product Overview

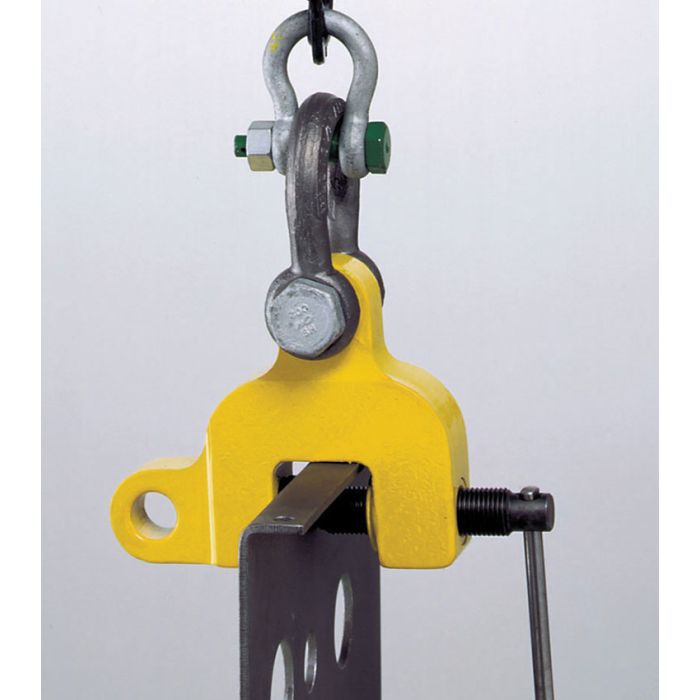

The Tigrip TSZ Screw Lock Lifting Clamps are manufactured for vertical lifting and horizontal pulling of loads of up to 7500 kg, with a jaw opening of up to 40 mm for the largest capacity option.

The Unit itself is a simple and effective solution for moving heavy loads in such environments as construction sites, and with the added benefit of two lifting points making this screw lock clamp ideal for precision positioning were a second anchor point is useful.

The clamps must be hand-tightened to the material by means of the screw spindle. Once the clamp is tightened and lifting begins, the pivoting pad clamping system produces a wedging action against the material, holding the load securely.

The plate surface of the material to be lifted must not exceed a hardness level of HRC 50/Brinell 480.

Lifting shackles are not included, however these can be purchased separately.

Designed and manufactured in Germany by Tigrip who are part of the Columbus McKinnon Group.
