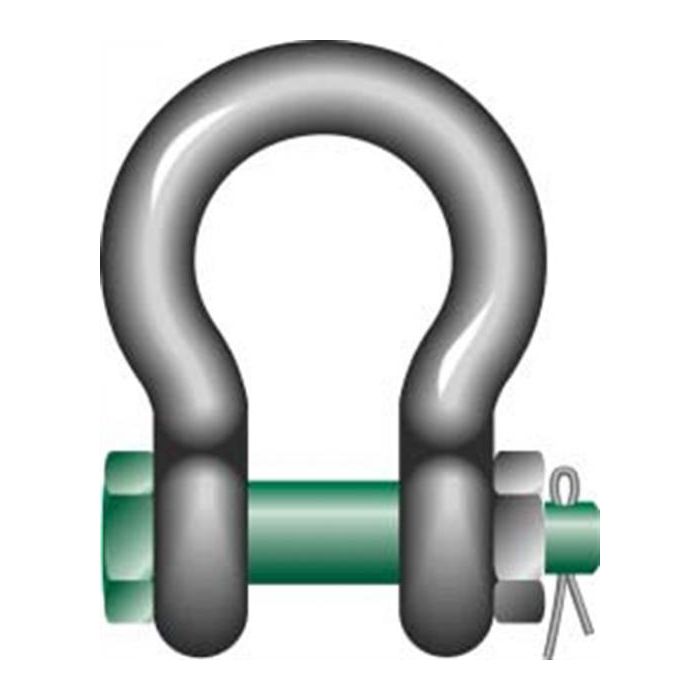

Bow Shackle with Safety Bolt Pin

Manufacturer: Green Pin - Europe

Safe Working Load: 0.50 to 85 tonnes

Model: G4163

Our Green Pin Shackles provide our customers a high quality European manufactured product utilised in some of the most harsh environments globally at very competitive prices.

Large UK stocks held for quick deliveries for our customers whether they are local or worldwide.

Full overview dimensional details please see below table and drawing, with further additional drawings, technical information and certification available to download in our above technical tab.

AUTOCAD Drawings available upon request.

Key specifications:

  • Galvanised finish - Provides long term durability for the most demanding of environments
  • Extra safety design with a securing cotter pin and safety bolt fixing - prevents possible unscrewing



Product details

  • Material bow and pin high tensile steel, Grade 6, quenched and tempered
  • Safety factor MBL equals 6 x WLL
  • Finish hot dipped galvanized
  • Temp. range -40°C up to +200°C
  • Certification:
  • 2.1
  • 2.2
  • 3.1
  • MTCa
  • DNV-GL ST-0378
  • CE
  • ABS
  • Manufacturing Standards - EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 2, Grade A, from 2 t and upward these shackles comply with ASME B30.26
