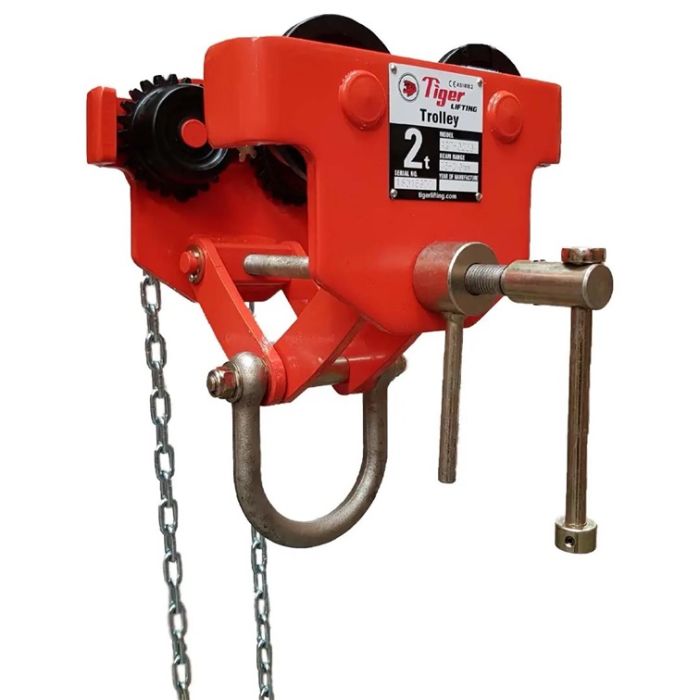

Tiger AGT Adjustable Hand Geared Trolley: Precision Movement, Heavy-Duty Performance

Built for Efficiency and Safety in Lifting Applications

Model: AGT (Hand Geared Trolley)

Capacity: 1,000 kg -  10,000 kg (1t to 10t Swl)

Product Description:

The Tiger AGT Adjustable Hand Geared Trolley is designed to address the unique challenges of lifting and transporting heavy loads in diverse industrial settings. This versatile trolley offers unparalleled flexibility, adapting to various beam widths thanks to its adjustable screw spindle mechanism. Its robust construction and high-quality components guarantee exceptional durability, even in harsh environments.

Safety is paramount with the Tiger AGT. The integrated anti-drop plates prevent accidental disengagement from the beam, ensuring operator safety and equipment protection. Sealed bearings and a geared operating system contribute to smooth, effortless movement, even with heavy loads.

Key technical specifications:

  • Beam width adaptability: 75mm to 305mm (Subject to model)
  • Lifting capacities: 1 tonne to 10 tonnes
  • Operating temperature: -40°C to +80°C (optional -60°C to +80°C)
  • Safety factor: 5:1
  • Standards compliance: BS EN 13157, AS1418.2
  • Fitted with a screw spindle which allows lockable adjustment to the various flange sizes within its capacity
  • The anti-drop plates design ensures extra safety and prevents damage to wheels when contacting end rail stoppers
  • Wheels run on sealed bearings for smoother rolling with less effort and maintenance
  • Powder coated universal wheels suit both tapered and flat flange beams
  • Locking device with high clamping force

The Tiger AGT Adjustable Hand Geared Trolley is the perfect solution for:

  • Construction sites
  • Manufacturing facilities
  • Warehouses
  • Workshops
  • Maintenance applications


Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

Due to our policy of continual product development, dimensions, weights and specifications may change without prior notice. Please check with your Tiger sales team when ordering.

Invest in quality, invest in safety, invest in the Tiger AGT. Contact us today to learn more about this industry-leading lifting solution!
