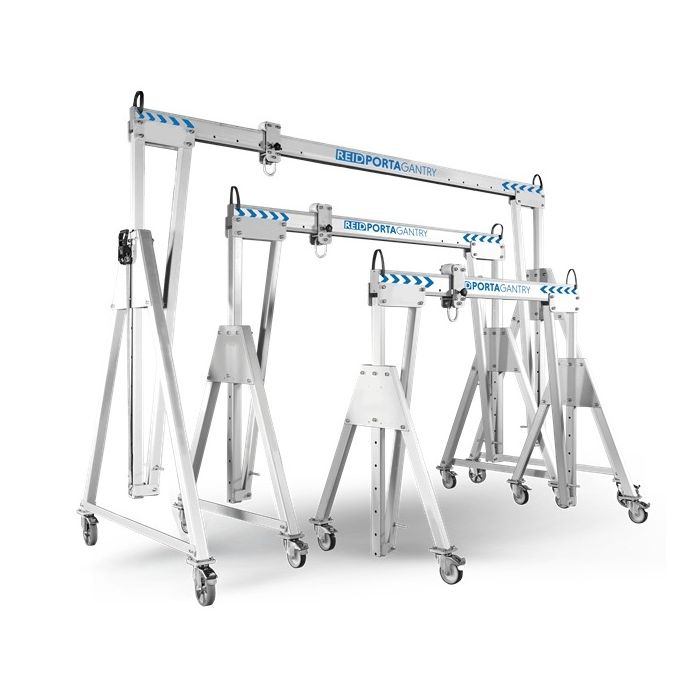

Reid Lifting Porta Gantry Range – The Ultimate Portable Aluminium Gantry System
Elevate your lifting capabilities with the REID Lifting Porta Gantry range, a series of market-leading, high-quality portable aluminium gantry systems. Engineered and manufactured in the UK by REID Lifting, these versatile gantries provide robust, reliable, and safe lifting solutions for a vast spectrum of applications, from complex confined space operations to heavy-duty materials handling in demanding environments.
The REID PORTAGANTRY series is renowned for its exceptional strength-to-weight ratio, achieved through innovative design and the use of high-grade anodised aluminium. This ensures not only outstanding durability and corrosion resistance but also remarkable portability, making these gantries easily transportable and deployable where traditional lifting equipment cannot reach.
Key Features and Benefits of the Porta Gantry Range:
- Unrivalled Lifting Capacities: The range offers diverse models to meet specific requirements, with Goods Working Load Limits (WLL) ranging from 500kg up to an impressive 5000kg, and Personnel Working Load Limits (WLL) up to 2500kg.
- Certified for Personnel & Fall Protection: Each gantry provides a secure overhead anchor point, suitable for multiple users for fall protection (up to 5 persons depending on the model), making them critical for safety in working at height and rescue scenarios.
- Simple & Rapid Assembly: Designed for efficiency, these gantries can be manually assembled with minimal effort, typically requiring just four bolts (or tool-free for the Rapide model). This rapid setup significantly reduces downtime and labour.
- Highly Versatile & Adjustable: Featuring interchangeable beams and A-frames, the Porta Gantry systems offer exceptional adaptability. Easily adjust height and span to suit various site dimensions and operational needs.
- Superior Portability: Despite their robust capacities, these gantries are engineered for lightweight portability. Equipped with ergonomic 360° swivel-locking castors, they can be effortlessly moved and precisely positioned, even under load (with appropriate supervision and WLL).
- Comprehensive Safety Compliance: Trust in a system that adheres to the most stringent international safety standards. The Porta Gantry range is EN795:2012 certified (for anchor devices), ATEX certified (Zone 2 as standard, Zone 1 as an option) for use in potentially explosive atmospheres, meets IRATA ICOP requirements, and is tested to PD CEN TS16415:2013 for multiple users.
- Durable & Corrosion Resistant: The anodised aluminium construction not only contributes to the gantry's light weight but also provides superior protection against corrosion, ensuring long-term reliability in harsh conditions.
- Wide Range of Applications: From intricate industrial maintenance tasks to demanding water treatment plant operations, the Porta
Gantry range excels in diverse environments including:
-
- Confined Space Access & Rescue
- Materials Handling & Logistics
- Working at Height & Fall Arrest
- Water & Wastewater Treatment
- Automotive & Aerospace Maintenance
- Railway & Infrastructure Projects
Invest in the REID Lifting Porta Gantry range from Hoist & Winch for a future of safer, more efficient, and incredibly adaptable lifting operations. With models to suit every demand, you're guaranteed a high-performance solution that delivers unparalleled reliability and peace of mind.
