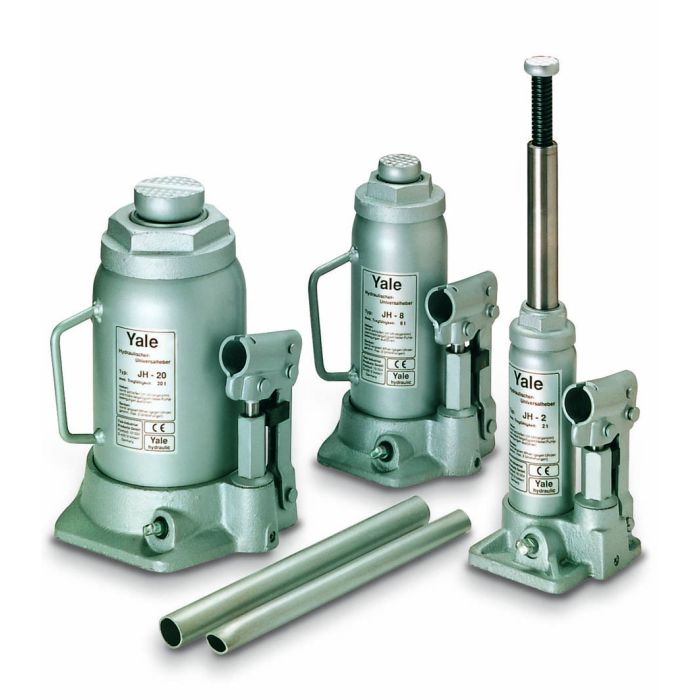

JH Bottle Jack

Suitable for horizontal and vertical positions

Model: JH

Manufacturer: Yale (Germany)

Capacities: 2 t, 4 t, 6 t, 8 t, 12 t, 20 t, 30 t and 50 t Swl

Piston Stroke: 115 mm to 180 mm


Product Overview

Our range of bottle jacks are an ideal product for mainteance and service engineers as this product is designed for all general operations such as lifting, pushing, moving and supporting of all kinds of loads.

The JH bottle jack can be used in vertical or horizontal positions to offer the user high forces of 2t to 50 t swl.

Compact closed heights of 181 mm to 305 mm and piston stroke lengths of 115 mm to 180 mm, also the 2t to 20 t swl jacks are included with inbuilt screw extensions providing 50 to 80 mm stroke.



  • Robust, long life design.
  • Pressure relief valve.
  • Precise controlled lowering.
  • Additional screw extension of the piston (from 2 - 20 t).
  • Grooved saddle.
  • Large base plates for increased stability.
  • Model JH-50-2 with two-stage pump.
  • Incl. operating lever.
