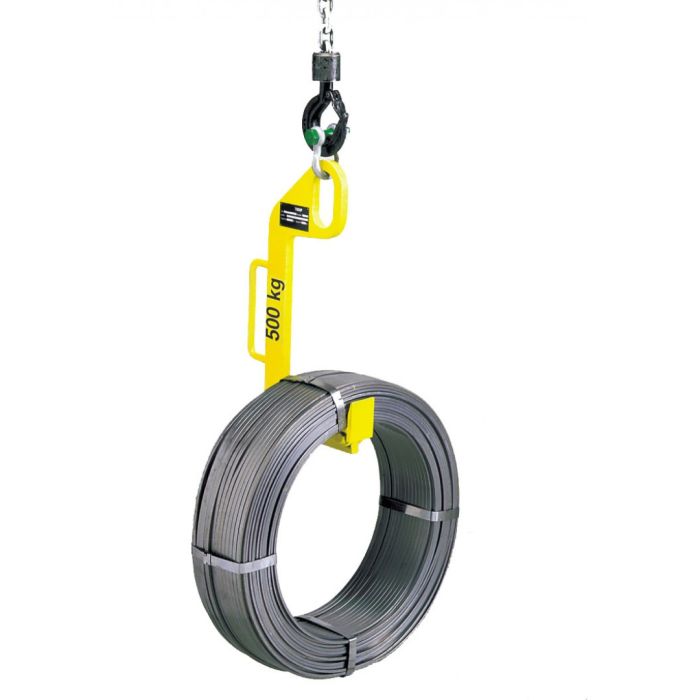

Lifting and Turning C-Hook
Designed to pick up coils of steel or banding material which is laying flat
Manufacturer: Camlok (Designed and Made in Great Britain)
Capacities: 500 kg, 1000 kg, 2000 kg and 3000 kg Swl
Minimum Internal Dimensions of Coil: 220 mm to 400 mm (Depending on Swl)
The TCS coil hook is a universal C-Hook. Due to its tipping feature, it can lift or lower the coil, whether the coil is lying flat or is in an upright position. The hook is fitted with a specially engineered tipping device.
The slow and safe movement of the tipping device ensures a continuous flowing movement when lifting or lowering the coil. At the same time, the tipping device serves the purpose of preventing accidental slipping of the load during transport.
Once the turning hook is positioned as per the below instructions and the crane hook is raised, the coil automatically transfers from the horizontal position to the vertical position.
Place the hook into the coil centre as shown in the figure 1 below, with the back of the lifting positioning plate touching the inside of the coil and the lifting sling vertical. Slowly raise the TCS C-Hook using the crane or hoist until the coil lifts from the resting position.
Whilst raising the coil the crane should be slowly traversed enabling the coil to pivot and rest in its final position flat and secure on the C-Hook.
