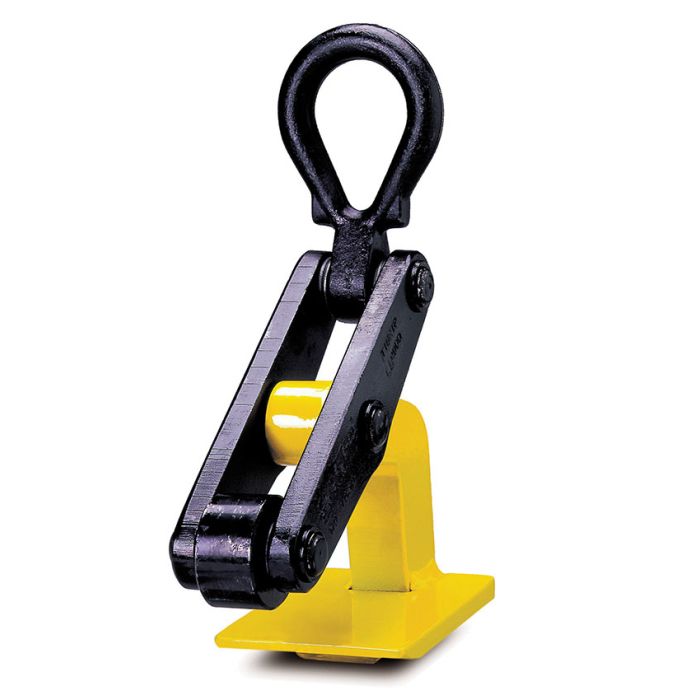

Horizontal Lifting Steel Plate Clamp

Steel Roller to Reduce Marking on Plate

Model:  RH

Manufacturer: Camlok (Designed and Made in Great Britain)

Capacities: 1500 kg, 2500 kg, 3500 kg and 5000 kg (Per Pair Of Clamps)

Jaw opening: 5 to 102 mm (Depending on capacity)

Specification and Pricing Details are per pair, these lifting clamps are to be used in pairs.


Product Overview

The Camlok RH range of horizontal lifting plate clamps have been designed to be used in pairs for the horizontal lifting and transporting of individual and bundled steel plate, with a maximum load of 5 t.

This range of Camlok clamp is fitted with a steel roller to reduce any potential marking of the material steel plate which is to be lifted.

For larger surface area loads, multiple pairs can be used in conjunction with a spreader beam to make safer handling.

A simple and effective design for loads up to 5000 kg (Per pair).

Chain slings and shackles are sold separately.

This series of lifting clamp is not suited for thin plates that have a tendency to sag during transport.

The angle from the vertical must not exceed 45°.

Upon special request and at extra cost we can offer non standard design pads instead of the steel roller wheel, in addition protective linings and special coating finishes are available.

As with all our Camlok equipment they have been designed with maintenance and service in mind, and therefore spare parts are available from U.K. Stocks, and repair work can be carried out by a suitably trained and component person.

How much does delivery cost?

There are three parcel sizes: small, medium and large. Prices, based on location, for each parcel size are as shown below.

Small: 0 to 20 kg

Medium: 20 kg to 40 kg

Large: 40 kg +

There is only one parcel charge per order.

Your delivery charge is calculated during checkout.






Collect From Hoist & Winch Limited - Redditch




Freight Delivery

UK Mainland


Export orders outside of UK mainland your carriage cost will be quoted separately after order placement. For very large order sizes, we reserve the right to re-quote the delivery charge before acceptance and shipment of your order.

When will I receive my order?

We will make contact with you to arrange a delivery time upon receipt of your order either by telephone or email; we will endeavour to deliver at the agreed time however, we cannot guarantee delivery dates and times as these may be affected by circumstances outside our control.

We will do our best to contact you if we are forewarned of delays.

Stock items should normally be delivered within 5 working days from date of order placement, but it may often be sooner. For non-UK-Mainland orders, delivery time may be longer.  For items currently out of stock delivery will usually be within 28 days.

For urgent orders please check for an up to date delivery time prior to order by either emailing [email protected] or telephone: 08450 171 126

Will all of my goods be sent at the same time?

We will pick all your items together and ship your order at the same time. However, depending upon the size of the order we may ship the order in more than one package. Consequently you may not receive all of the goods/packages at the same time. If you order an item which is marked 'pre-order' we will not usually dispatch your order until your whole order is ready. Please let us know if you'd like part of your order dispatching sooner, and we will of course be happy to help.

When do you normally attempt deliveries?

Small and medium parcels are usually sent by Courier. Large parcels are sent by a Pallet network courier, who deliver Monday to Friday, typically between 8:00am and 5:30pm.

Gaining Access to Delivery Address

If we are unable to gain access to the agreed delivery address we will return the goods to our warehouse and make contact with you to re-arrange delivery.  Unfortunately in these circumstances we may have to charge you a further delivery fee

How do I track my delivery's progress?

Please contact our sales team on [email protected]

Where will my order will be delivered?

Delivery will be made to the address of the registered debit/card holder used to place the order.  Alternatively, an alternative delivery address can be agreed post order, please contact via email: [email protected]


Suitable means of unloading heavy loads must be provided by the customer upon

Camlok RH Horizontal Lifting Plate Clamp, Up to 5000 kg Swl Per pair
