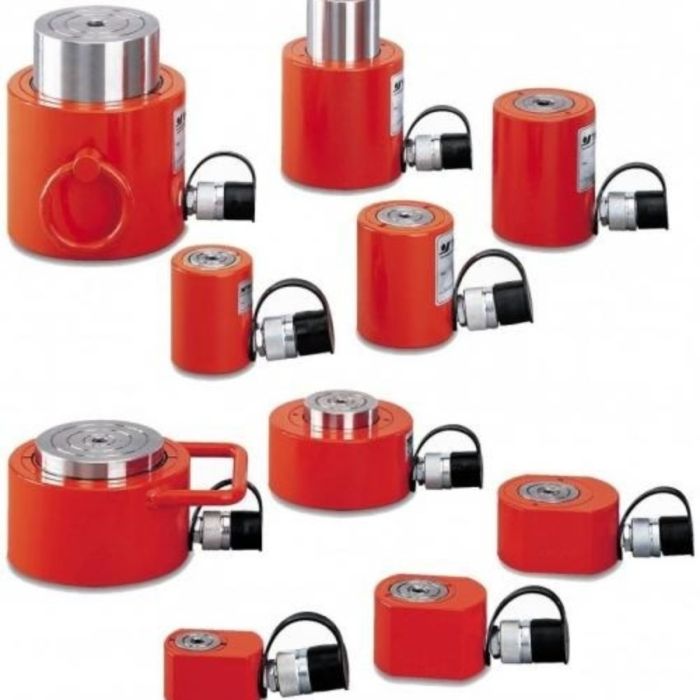

YLS and YFS Hydraulic Cylinder

Universal Single Acting Low Profile (YLS) and Ultra Low Profile (YFS)

Model: YLS and YFS

Manufacturer: Yale (Germany)

Capacities: 10 t, 20 t, 30 t, 50 t and 100 t Swl



Product Overview

Our range of low profile and ultra low profile single acting Yale hydraulic cylinders are designed for applications were minimal clearances are availble whilst offering high force lifting capacities, for example our 10t cylinder offers a closed height of just 43 mm with a stroke length of 11 mm allowing operators to use in the most confined spaces.

As with all our Yale hydraulic cylinders they are manufactured to the highest of standards and provide chromium plated piston with bronze bearing for smooth operation, as well as a spring return.

Each cylinder is provided with a single entry female coupler on the cylinder casing, providing a maximum operating pressure of 700 bar.



Features

  • Yale ChroMo-Design
  • Operating pressure max. 700 bar.
  • Single-acting with spring return.
  • Low height for tight working areas.Cylinder body and piston are made from massive chromium-molybdenum steel and heat treated.
  • Stop ring can bear full capacity (pressure) and is fitted with dirt wiper.
  • Oil port thread: 3/8 NPT.
  • Incl. female coupler half model CFY-1.
  • Model YLS-100/55 is equipped with two lifting rings model YFS-100/15 comes with a carrying handle.
