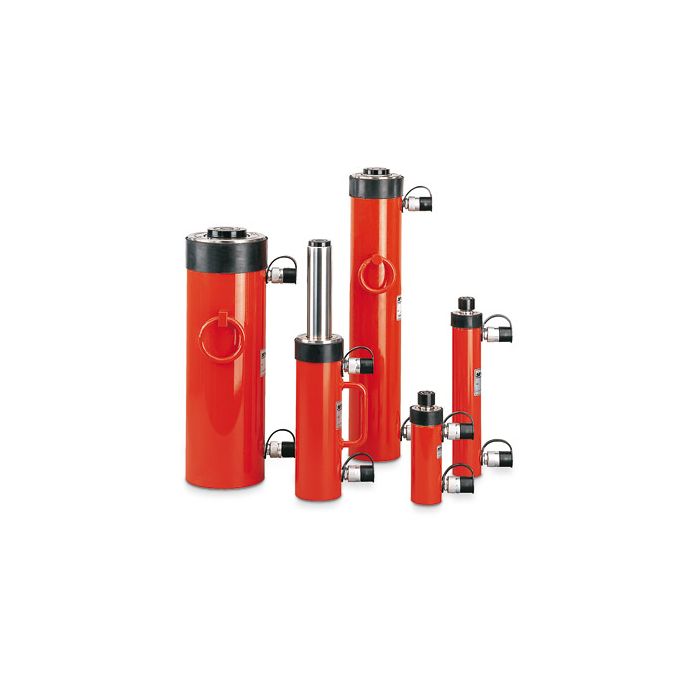

YH Hydraulic Cylinder

Universal Ram

Double Acting

Model: YH

Manufacturer: Yale (Germany)

Capacities: 5 t, 10 t, 20 t, 30 t, 50 t, 70 t and 100 t Swl


Product Overview

Double-acting hydraulic cylinders with high retraction speed. The powerful return of the piston, the extra long piston bearings and the high-grade material make these cylinders extremely robust and suitable for the toughest of jobs. Incl. saddle, mounting threads and two female coupler halves.



  • Yale ChroMo-Design.
  • Operating pressure max. 700 bar.
  • Double-acting with hydraulic return.
  • Long bronze piston guidings.
  • Piston strokes from 30 up to 500 mm.
  • Cylinder body and piston are made from massive chromium-molybdenum steel and heat treated.
  • Double bronze bearing of the hard chromium plated piston.
  • Metric mounting threads on cylinder housing, in the bottom of the cylinder body and in the piston rod.
  • Stop ring can bear full capacity (pressure) and is fitted with dirt wiper.
  • Interchangeable hardened saddle.
  • Dirt wiper protect against dirt.
  • Oil port thread: 3/8 NPT.
  • Incl. 2 female coupler halves model CFY-1.
  • From YH-30/200 with carrying handle.
  • From YH-50/350 with 2 lifting rings.
