Tiger TYAA 21 Two Jaw Sliding Beam Anchor: Safe and Easy Fall Protection for Work at Heights

Benefits and Advantages of the Tiger TYAA 21 Two Jaw Sliding Beam Anchor

Capacity 140kg

Minimum Breaking Strength 22.3 kN (5,000 lb/2.27 tonne)

Product Description

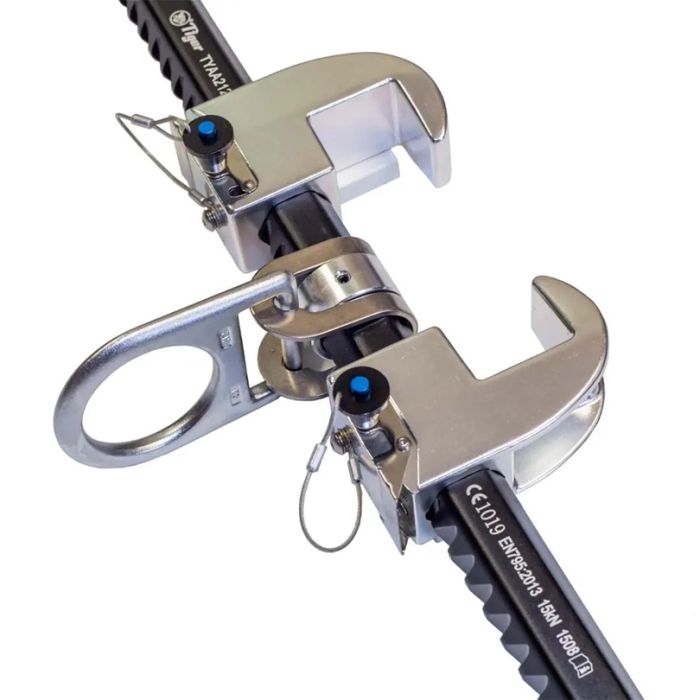

The Tiger TYAA 21 Two Jaw Sliding Beam Anchor is a CE certified (CE 1019) anchorage connector designed for use in personal fall arrest systems. It is a versatile and quick to install solution for securing a fall arrest system to horizontal I-beams.

The Tiger TYAA 21 is manufactured from high-quality steel and has a minimum breaking strength of 22.3 kN (5,000 lbs/2.27 tonnes), making it suitable for supporting a single person with a combined weight of up to 310 lbs (140 kg).

Key features of the Tiger TYAA 21 Two Jaw Sliding Beam Anchor:

  • CE certified (CE 1019) to meet the requirements of EN 795:2012/B and ANSI/ASSE Z359.1-2007 for assured safety
  • Quick and easy to install for efficient setup of fall arrest systems
  • Versatile for use with a wide range of horizontal I-beam widths (from 2.5" to 24")
  • Durable construction from high-quality steel for long-lasting performance
  • High breaking strength of 22.3 kN (5,000 lbs/2.27 tonnes) for reliable fall protection

Applications and Uses:

The Tiger TYAA 21 Two Jaw Sliding Beam Anchor is ideal for various applications requiring fall protection at heights, including:

  • Construction work
  • Industrial maintenance
  • Roof work
  • Wind turbine maintenance
  • Bridge maintenance

Benefits and Advantages:

  • Ensures worker safety by providing a secure anchorage point for fall arrest systems
  • Easy to use and install for efficient setup and takedown
  • Versatile for use in various work environments
  • Durable and reliable for long-lasting performance
  • Complies with safety standards for assured user confidence

Technical Specifications:

  • Product Code: TYAA21
  • Beam Flange Size: 2.5" to 24" (6.35cm to 60.0cm)
  • Minimum Breaking Strength: 22.3 kN (5,000 lbs/2.27 tonnes)
  • Capacity: 1 person (up to 310 lbs/140 kg)
  • Weight: 1.93 kg to 2.51 kg (depending on model)

Safety Information and Compliance:

  • It is recommended that structural calculations are carried out by qualified engineers to ensure safe operation before use.
  • The Tiger TYAA 21 Two Jaw Sliding Beam Anchor is designed for use by a single person only.
  • Always follow the manufacturer's instructions for use and maintenance of the product.
