Concrete Pipe Lifting Clamp
For use with concrete pipe sections or round, square manholes
Model: RB (Topal)
Manufacturer: Tractel (France)
Capacity: 500 kg Swl (Per Clamp)
Generally Purchased in sets of two (1000 kg Swl) or three (1500 kg Swl)
Specification and Pricing Details are per clamp
Chain Slings available as extra cost option
The Tractel Topal RB concrete pipe camp is designed for the vertical lifting and transportation of sections of concrete pipe with a diameter of up to 2000 mm.
The Jaw opening of this lifting device is designed for a pipe thickness of between 40 to 110 mm.
Attachment and removal of the lifting clamp from the pipes has been designed so that it can be carried out easily in demanding site conditions, such as those found on construction sites.
- The chain slings provided by the manufacturer (1500 mm per leg) are adapted to manholes with diameter/ length inferior to 2200 mm.
- In case we do not deliver the chain sling, use a model similar to the one we recommend.

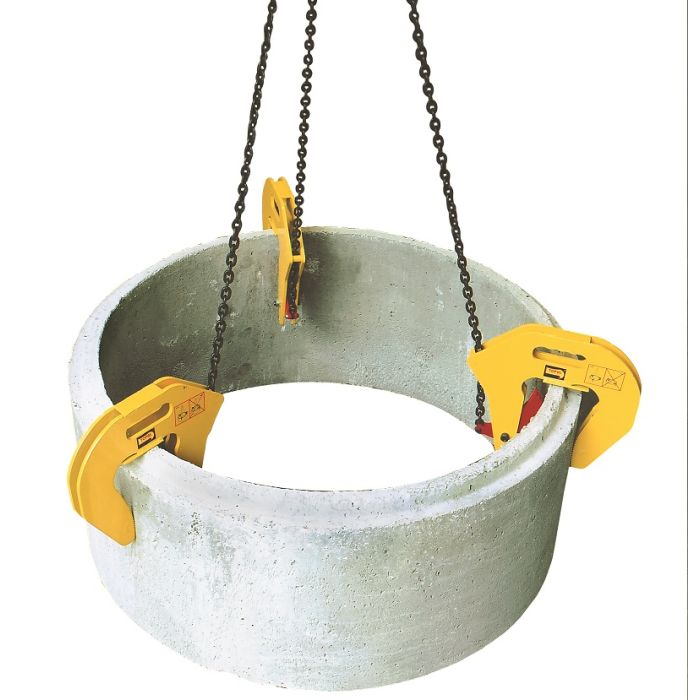

- Use with a set of 3 hooks is recommended for handling circular manholes.
Use in set of 3: the hooks should be evenly positioned on the edge of the manhole (120° spacing).
- Use in pairs: maxi WLL 1000 kg/ pair ; make sure the hooks are facing each other.
Do not turn over manholes with those hooks.
- The minimum weight of lifting load should be equal to 5% of the clamp’s WLL (eg if clamps WLL is 1000 kg, then minimum weight is 50 kg). This value is given for a clamp in perfect working order and respecting Tractel Solutions SAS conditions of use and recommendations.
- Lifting clamps are not suitable for creating permanent joints.
- Working temperature: -20° to +100°C.
- Solid construction
- Simple and safe handling.
- Large jaw capacity.
- For heavy duty use.
- Lightweight design.
- Service friendly.
- For concrete according to DIN4034.
- Manufactured without load bearing welds.
- Hot epoxy coating.
- Safety factor: 3 in accordance with the EN 13155.2003 norm.
- Product conforms to the French regulation, in particular the decree of 01/03/2004 relating to the check on lifting devices and the European Directive n°98/37.
- Product with EC marking and delivered with a declaration of conformity and instructions for use.
Workmanship and parts
This Pipe clamp is service-friendly, making it easy to exchange parts, which are readily available from Europe. Clamp repairs are available through Hoist and Winch Limited, or can be carried out by a competent person.
