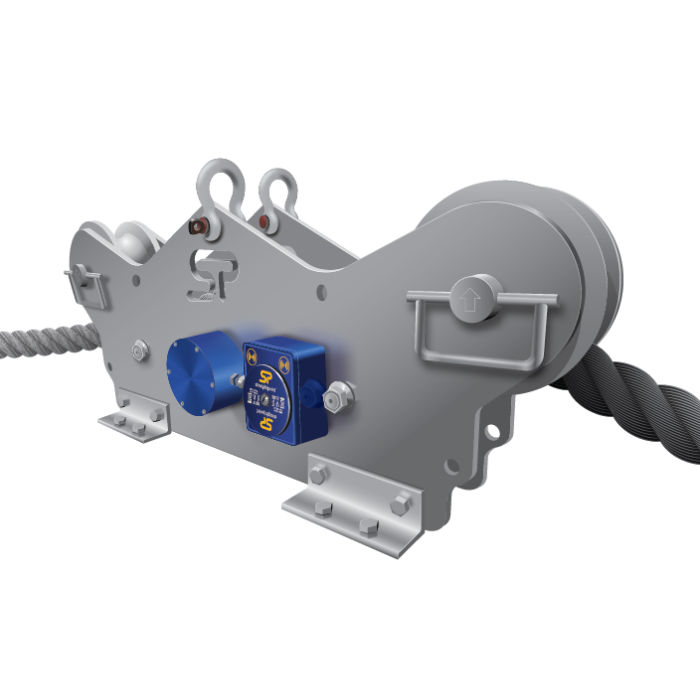

TIMH Running Line Dynamometer

Manufactured By Straightpoint in the UK

The Running Line Dynamometer is part of the TIMH range, used regularly in the dockside, towage and salvage industries. Developed using marine grade stainless steel it is of robust design and is often required when no anchor or dead end on a line, for rigging a SP Radiolink/Loadlink digital dynamometer for measuring tension force. It is suitable for multiple wire rope configurations of up to 80 tonnes (also able to calculate lineout as metres of feet). Also available with hazardous area approval. Measures tension force at speeds of up 20m/min (65ft/min). TIMH has various mounting points but the option of custom engineered solutions are also available to suit your application. Wireless and cable systems are available using SP's HHP range of handheld displays, or alternatively with SW-MWLC software.



  • IP67/NEMA6 loadpin
  • Validated by FEA
  • Maintenance free heavy duty bearings
  • Five wheel design for optimum accuracy
  • Battery life of 1200 hrs (industry leading)
  • Range capacities of up to 80 tonnes/wire rope diameters of up to 52mm/2"
  • Corrosion resistant
  • Gravity catches for quick wire rope installation
