Pfaff - Electric Winch

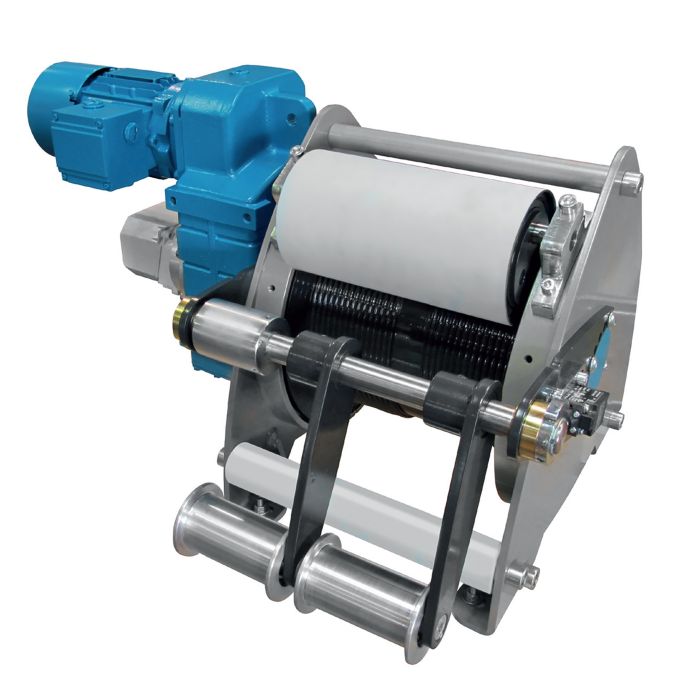

BETA EL Series Electric Winch
Capacity: 320 kg to 7,500 kg Swl
The robust and elegant electric wire rope winches BETA EL are used for lifting, lowering and pulling all types of loads in all applications.The proven technology and the high quality standard of the electric wire rope winch BETA EL guarantee trouble-free, reliable and durable operation. The construction kit system permits high flexibility. the electric wire rope winches BETA EL with their many options can be combined very well into an individual solution. The use of high-quality components offers safety and long service lives.
The BETA EL Series winch is also availabel manufactured to BGV and ATEX standard:
Lifts loads over persons perfectly safely: the BETA EL with BGV C1 approval lifts and positions equipment and decorations precisely in trade, industry and public use. The BETA BGV C1 is also used in theaters together with the tried and tested DELTA theater winch. The electric wire rope winch BETA EL BGV C1 is also offered in the BGV D8 PLUS design for positioning of structural.
The electric wire rope winch models BETA EX have been constructed for special uses. They are operationally safe where there is a danger of igniting explosive atmospheres (mixtures of air, gases, vapors or dust/air mixtures). Since the electrical wire rope winches can be used in very different surroundings, the matching winch for each application can be assembled easily with our flexible construction kit system.
Equipment and processing
• Carrying loads 320 - 7500 kg• Maintenance-free worm gear pairs or low-maintenance spur gear with milled and ground gears – running in oil bath• Very quiet running by diagonal interlock• Electrically released spring-applied disk brake• Duty ratio S3 – 40 %• Contactor control 42 V• Range of temperature: -20 °C – +40 °C• Powerful three-phase motor for multi-range voltage 380 – 420 V / 50 Hz or 440 – 460 V / 60 Hz • Motor protection type IP 55• Grooved wire rope drum• Large wire rope capacity• 2 rope fasteners for variable rope direction
• Modular construction system with many versions
• Electronic overload protection as of 1000 kg lifting load• Large wire rope capacity• According to the accident prevention provisions BGV D8
• External operation via control pendant / radio• Gear limit switch, adjustable • Slack rope switch• Rope pressure roller• Special wire rope drums for multi-rope operation• Drum extensions for higher stroke travel• Special preservation • Other operating voltages • Other motorprotection types• Absolute and incremental encoder • Control with frequency converter forcontinuously adjustable variable speeds
ATEX Options• Electric control with flameproof enclosure Ex II 2 GD de IIB T4 T 135 °C• Electric control non ATEX-compliant (mounted outside ATEX area)• Special wire rope drums• Pressure roller• Special voltages• Special wire ropes with copper-plated lifting hooks• Sheaves, wire rope pulley blocks (ATEX-compliant Ex II 2 GD IIB T4 135 °C IP 65)
