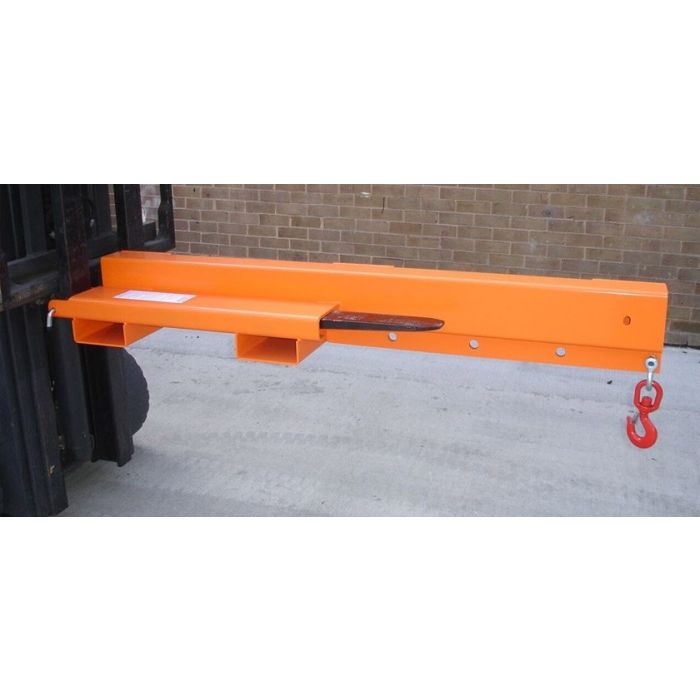

Low Profile Fork Truck Jib Arm Crane Attachment

Capacities: 1000 kg to 4000 kg

Where you are working with a restricted height, the low-profile jib enables the movement of long and awkward loads from inaccessible locations. It provides the potential of 5 different lifting centres.

OPERATION

  • Position the forks to the correct distance apart to locate into fork pockets.
  • Remove the heel pins from the attachment.
  • Drive the forks into the fork pockets.
  • Insert fork pocket heel pins directly behind the heel of the fork and attach safety lynch pin into hole provided.
  • Position the swivel hook and shackle to the desired lifting point, ensuring that the shackle is adequately tightened.
  • The attachment is now ready for use.

STANDARD FEATURES

  • Multi hook positioning from 500-1750 mm load centres
  • Supplied with swivel hook and bow shackles
  • Four-way pocket entry for easy storage
  • Maximum fork section 150 x 50 mm at 281 mm centres.
  • Zinc plated heel pins for safe attachment to forklift truck
  • Painted bright orange for additional safety
