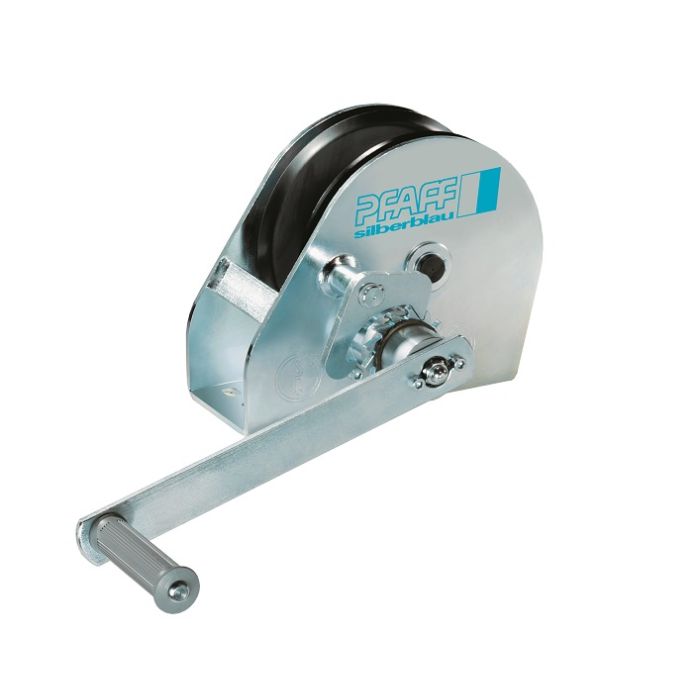

Pfaff Manual Winch Zinc Plated - LB Model

ZINC Plated Design


Capacity: 150 kg to 1,200 kg Swl


Originally developed as an offroad manual winch the console-mounted LB manual winch is used today for a variety of lifting and pulling applications.


Features at a Glance

  • Light weight robust stamped steel housing.
  • Spur gear drive for optimal efficiency and comfortable handling.
  • Automatic load pressure brake for save holding of the load in any position. An unintentional brake release is
  • prevented.
  • All parts are zinc-plated for increased corrosion protection, drum with additional special coating.
  • Easy and quick mounting to consoles, even under lifting conditions.



  • Stainless steel version (mat. 1.4301) for increased corrosion protection.
  • Free wheeling device for a quick manual unrolling of the unloaded rope.
  • Variable crank with adjustable crank handle.
  • Foldable crank with tilt able handle for use in confined spaces.
