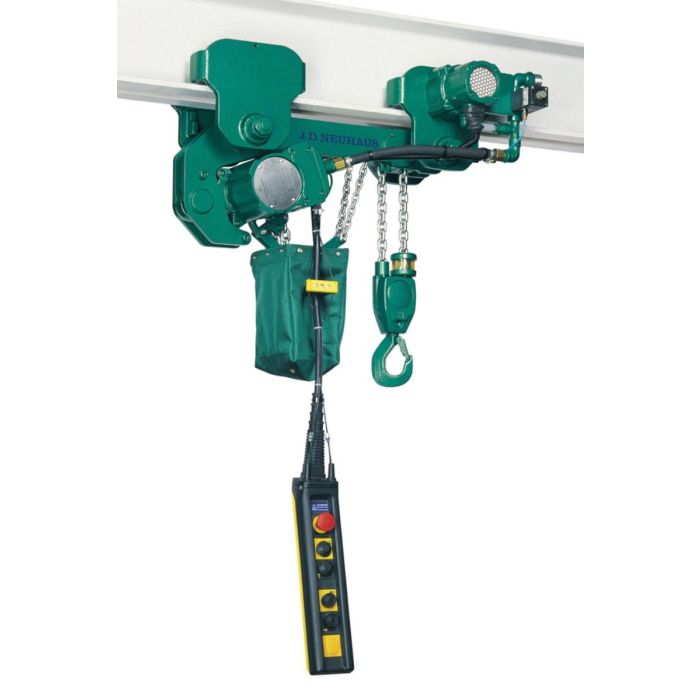

JDN Low Headroom Design Air Chain Hoist - LMF Model



The trolley for areas where headroom is restricted
Carrying capacities: from 500 kg to 6,300 kg Swl

When only low headroom is available and the standard trolleys don't meet the requirements we recommend the JDN low headroom trolley design where the air hoists are horizontally mounted to minimise closed headrooms.



Classification as Standard: Ex II 2 GD IIA T4(X), Ex II 3 GD IIB T4(X) - Higher Classification available upon request






Standard features:

  • State of the art by using JDN Air Hoists PROFI-TI as well as a new driving motor
  • Low-maintenance and low-wear operation of the motors by means of a reduction of components
  • No additional motor lubrication required
  • 2-step travelling speed
  • Changeable track width *






Special Features:

  • Able to negotiate curved beams
  • Longer cross beams to improve the minimum headroom even with heavier loading



Options:

  • Rack and pinion drive
  • Offshore paint
  • Spark resistant package



Energy Feeding Systems:

The energy can be fed by various different systems:

  • Energy chain
  • C-shaped rail
  • Square rail
  • Spiral hose
  • Hose trolleys
