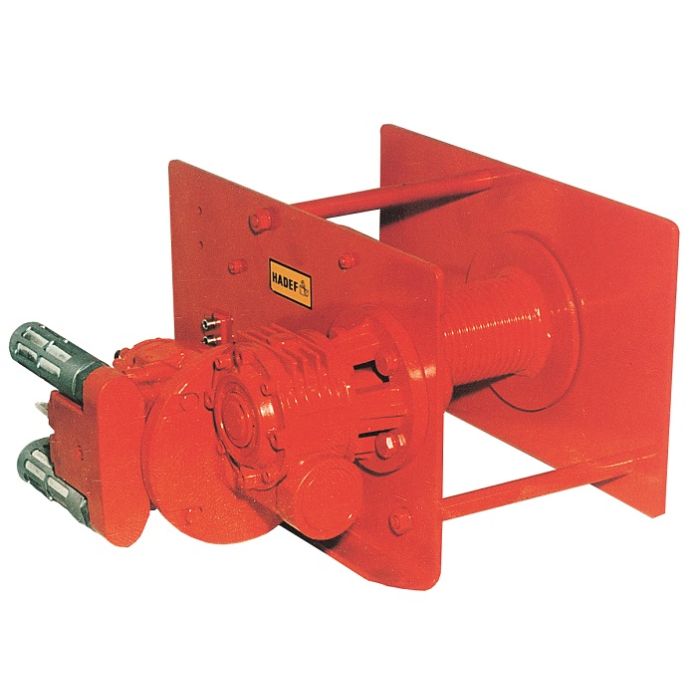

Hadef Air Winch
Suitable for Pulling or Lifting Appllications
Model: Liftboy
Manufacturer: Hadef - (Germany)
Capacities: 250kg, 500 kg, 990 kg, 1000 kg and 2000 kg
Air Pressure: 6 bar
Product Overview
HADEF wire rope winches are designed for stationary use and are fitted with pre-drilled mounting holes within the base feet. The two sideplate halves are connected by threaded bolts and distance tubes. The rope drum between the two housing halves offers wire rope exits in several directions. Different installation positions are possible - make sure the drum axle is always positioned horizontally.
The winch lifting gear is operated by a standard type hand-held push button pendant, and includes emergency stop button as standard. Our range of Hadef Liftboy air winches are fitted with a fail safe brake, which is integrated and prevents the load from slipping after releasing the pendant control buttons.
The Liftboy is a robust and light weight in construction pneumatic winch, with a steel construction.
Suitable for numerous applications and environments, and can be found in manufacturing production assembly, industrial, mining, petro-chem, food industry, construction sites to name but a few.
Explosion Protection is available as an extra cost option and is suitable for:
Zone 1 and 21
Zone 2 and 22:
Zone 1: EX II 2G Ex h IIB T4 Gb for gas or
Zone 21: EX II 2D Ex h IIIA T135°C Db for dust
HADEF winches are suitable for explosion proof environments follow the valid directives and are classified to the given ATEX classes.
The Standards:
2014/34/EU (ATEX),
EXVo, EX-RL,
BGR 132,
DIN EN 13463-1
DIN EN 50014.
The possible ATEX classes for pneumatic equipment according to the execution and model:
EX II 2G Ex h IIB T4 Gb for gas or EX II 2D Ex h IIIA T135°C Db for dust
HADEF winches must NOT be used in zone 0 and 20, just as in zone 1, 2, 21 and 22 with gases classified into group IIC and not with IIB gas "hydrogen sulphide" and "ethylene oxide" as well as light metal dust and impact-sensitive dust.
Features and Options
- Extremely compact and light weight
- Geared Limit Switches for top and bottom hook positions (Lifting Type)
- Sensitive pendant control up to 500 kg Swl models
- Explosion protection available as optional extra
- Plain drum type as standard, Grooved Drum options available
- Extended drum for greater wire rope capacity
- Rope Pressure Roller Extra cost feature
- Few components for easy maintenance
- Wear resistant motor braking system
- Fail safe spring brake assembly
- light weight for easy handling
- Filter, Regualtor and lubricator maintenance unit
- 100% duty rating and unlimited cycle (No over heating like electric winch options)
- FEm Duty Calssification: 1Bm M3
- Maintenance free bearings - sealed for life design
- Insensitive to dust, humidity and temperatures from -20 ° C to + 40 ° C
