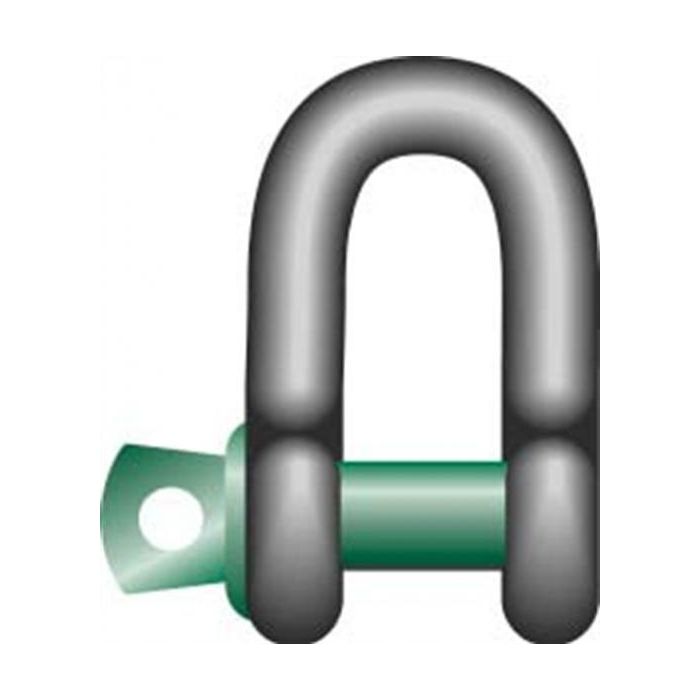

Dee Shackle with Screw Collar Pin
Manufacturer: Green Pin - Europe
Working Load Limit: 0.33 to 55 tonnes
Our Green Pin Dee Shackles offer our customers a high quality European manufactured product utilised in some of the most harsh environments globally at very competitive prices.
Large UK stocks held for quick deliveries for our customers whether they are local in the United Kingdom or worldwide.
Full overview dimensional details please see below table and drawing, with further additional drawings, technical information and certification available to download in our above technical tab.
AUTOCAD Drawings available upon request.
- Galvanised finish
- Sunk screw thread not exposed to wire rope or slings to reduce snagging or increase in wear
- Screw Pin for quick rigging and de-rigging
Material Shackle and pin high tensile steel, Grade 6, quenched and tempered
Safety factor MBL equals 6 x WLL
Finish hot dipped galvanized
Temp. range -40°C up to +200°C
- DNV-GL ST-0378
Manufacturing Standards - EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 2, Grade A, from 2 t and upward these shackles comply with ASME B30.26
