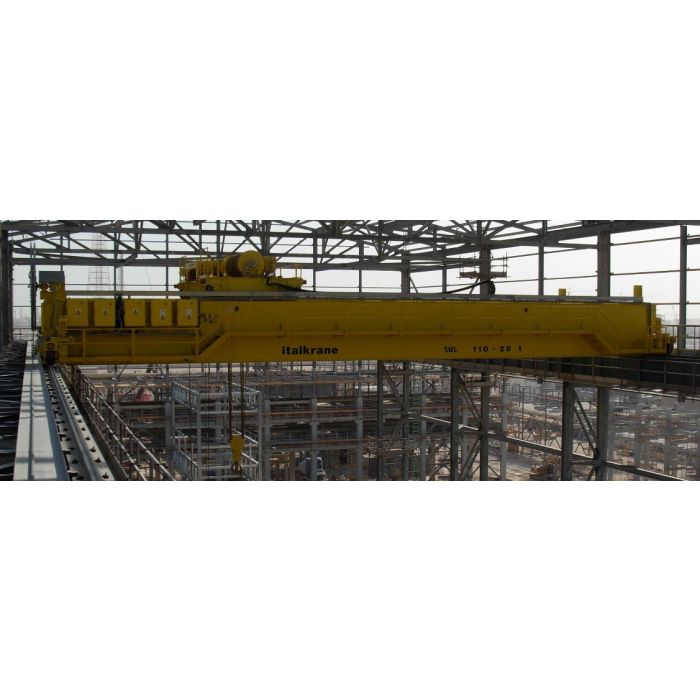

ATEX Electric Powered Overhead Travelling Crane (OHETC)



Capacities: 500 kg to 320 t Swl



Spans: 1 metre to 30 metre +



Hoist and Winch explosion proof electric powered overhead travelling cranes are suitable for working hazardous areas and arduous environments such as those found in the Oil and Gas industry.



The explosion classifications that are avaialble for our electric powered overhead travelling cranes are as follows:

Explosion proof Classification available up to:  Zone 1 EExd IIC T3 or Zone 1 EExd IIB T5



  • Overhead cranes in single and double girder configuration
  • Full and semi portal gantry cranes
  • Jib cranes



All of our explosion proof electric powered overhead cranes can be manufactured to the customers specific requirements and application.




Some special features that Hoist & Winch Cranes can offer

    • Micro motor dual speed lifting/lowering, which offers very fine speed control, greater reliability than standard pole changing two speed hoist motors and the added safety of motor brakes fitted to both the main and micro hoist motors
    • Electronic overload protection
    • Rack and pinion drive
    • Manual motor brake release device
    • Special paint finishes
    • Articulated trolley design
    • Drum operated second emergency hoist brakes
    • Travel limit switches
    • Extra long lifting heights and non standard speeds.
