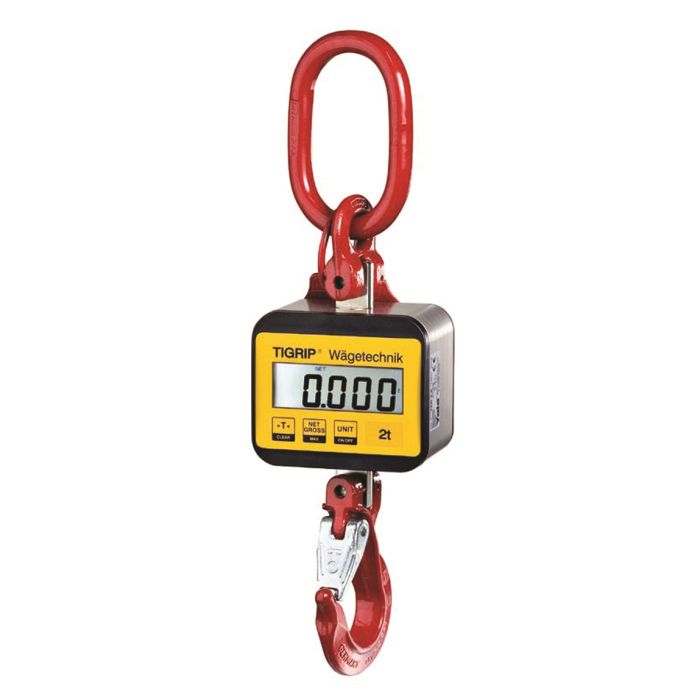

Crane Weigher

In built Digital Readout (TKL) and option for Remote Handset (TKR)

Model: TKL or TKR

Manufacturer: Tigrip/Yale (Germany)

Capacity: 1000 kg, 2000 kg, 3200 kg, 5,000 kg and 12,000 Kg



Product Overview

The crane weighers TKL and TKR are compact measuring devices for the weighing of loads.

The TKL model is the standard digital display unit and the TKR model comes complete with a radio remote control.

Use appropriate attachments like grade 8 forgings between the hook of the hoist or crane, the crane weigher, and the load. They are very simple and straight forward to use!

The crane weighers have a liquid crystal display (LCD), which can tare as well as show either the gross or the net load. It also indicates overload at 110% of the rated capacity and the status of the battery.

- with digital display model TKL

Features

  • High accuracy
  • Lightweight design
  • Easy-to-read display
  • Easy to use
  • Retains the peak value to memory.
  • The battery capacity provides for around 200 operating hours.
  • Use of rechargeable batteries possible (external battery charger*).
  • Display of maximum weight gross/net).
  • Measuring units: kg, t, lbs, to, kN.
* not part of the delivery package.



- with digital display and radio control model TKR

The crane weigher can be operated by radio control. The displayed values can be taken off the remote control device and can be transferred to a PC. The system can be combined with an easy-to-read display. Several measured values can be totalled and saved.Features

  • TKR crane weigher has the same features like the TKL model plus:
  • Remote control and data exchange via radio transmission.
  • USB interface
  • Accumulation memory
