Hand Grip Clamp
Ideal for thin sheets of steel or other materials
Model: HGC
Manufacturer: Camlok (Designed and Made in Great Britain)
Capacities: 250 kg Swl
Jaw opening: 10 mm
Self Weight: 1.4 kg
Product Overview
Designed and manufactured as a simple and effective way for individual vertical lifting and transportation of thin sheets of steel in environments such as those found in steelwork fabrication workshops.
The HGC Hand Grip Lifting Clamp are manufactured for lifting light loads of up to 250 kg with a maximum material thickness of 10 mm.
The Unit itself is robustly built although extremely light weight, weighing in at only 1.4kg.

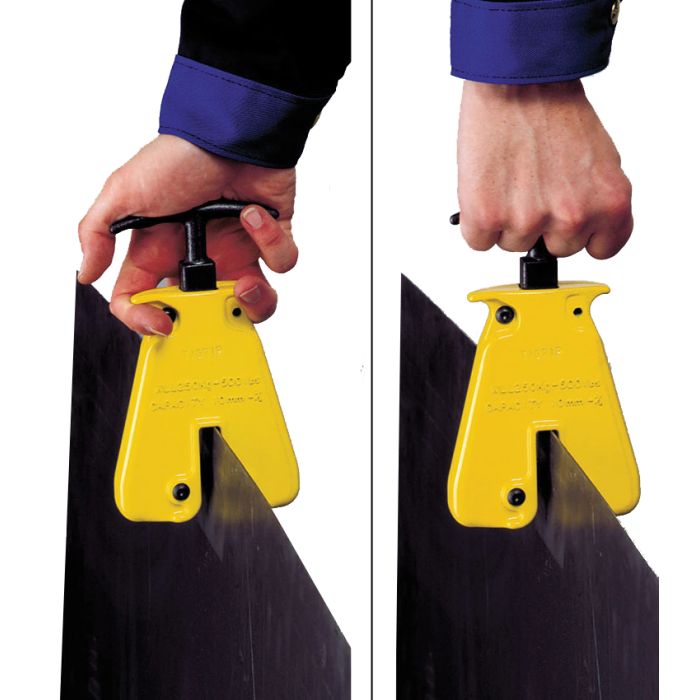

To operate the clamp you simply press down on the hand grip which releases the tension spring. This allows the clamp to open and slide onto the sheet steel or plate. The material can then be safely lifted and transported using the ergonomically designed hand grip.
The positive spring pressure within the mechanical mechanism prevents the material from accidentally slipping out of the clamp.
These clamps are ideal for general fabrication or workshop areas.
These clamps have been designed with maintenance and service in mind, and therefore spare parts are available from U.K stocks. Repair work can be carried out by a suitably trained and component person.
Features
- Additional lever in clamping mechanism provides a very high gripping force
- Can be used to lift plate from horizontal to vertical position
- Can be used on all structural steel plates and sections up to a surface hardness of 300 Brinell (32HRc)
- Not suitable for steel over 300 Brinell, stainless steel, lead, copper and materials over 120ºC/ 250ºF surface temperature
- Enables the operator to open and attach the clamp to sheet material by depressing the lifting handle
- Two pre-tensioned, hardened, serrated toothed jaws grip the sheet securely when the handle is released, preventing plate slippage
The HGC hand grip is available with three handle options:
- Standard Hand Grip Handle
- Extended 300 mm Handle
- Eye Bolt Ring
