DC500 Drum Clamp

For use with steel drums and barrels only

Model:  DC500

Manufacturer: Camlok (Designed and Made in Great Britain)

Capacity: 500 kg Swl

Specification and Pricing Details are per clamp



Product Overview

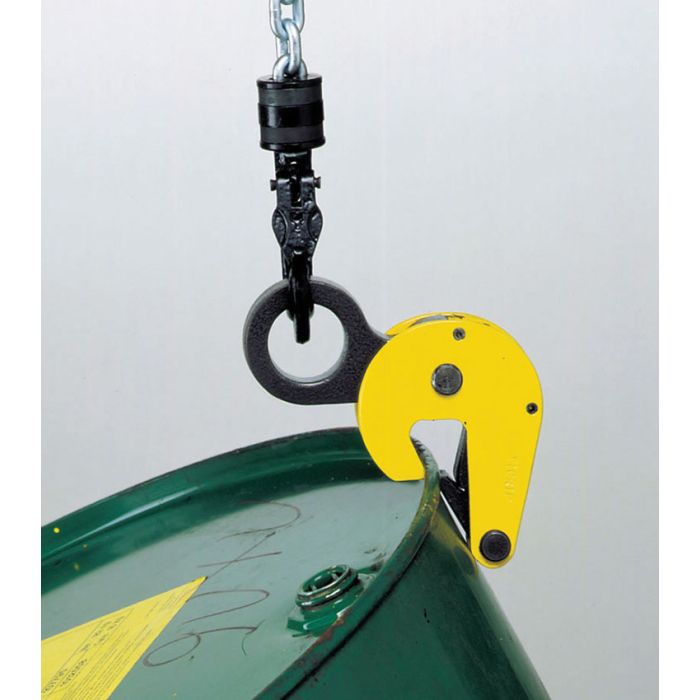

These clamps are designed for the lifting and transportation of vertically stored steel drums or barrels type class S20031, 2 & 3 with a wall thickness greater than 1.125mm.

The Camlok DC500 clamp can be used to lift sealed drums on their own, if an open drum is to be lifted, two clamps can be used with either a two-leg chain sling or other suitable lifting attachment.  Chain Slings are not included within our purchase price, however these are available as an extra cost item if required.

The clamp is not suitable for materials over 120° surface temperature.

The working load limit of the clamp should be as close as possible to the actual load to be lifted. This ensures that the clamp is working at maximum efficiency. Extra care must be taken when lifting drums of less than 20% of the rated jaw capacity.

These drum handling grabs are extremely light weight in construction, self-weight of 1.2 kg per clamp, therefore providing users with a portable drum handling device that is simple and effective in design.

The Jaw of this drum handling lifting device is designed so that it is suitable for either empty or sealed drums.  If the operator is loading or unloading empty or sealed drums then one grab can be used.  However, if open full drums are being lifted, as a matter of principle they should only be used in pairs.

A spring-loaded cam prevents the accidental opening of the clamp when in use.

As with all our Camlok equipment they have been designed with maintenance and service in mind, and therefore spare parts are available from U.K. Stocks and repair work can be carried out by a suitably trained and component person.
