Steel Beam or Girder Turning Clamp
Ideal For Lifting And Turning Steel Girders Through 90º
Model: CG
Manufacturer: Camlok (Designed and Made in Great Britain)
Capacity: 2000 kg
Jaw opening: 0 to 32 mm
Product Overview
The main purpose of the Camlok GG girder turning clamps is for the transportation and turning of steel girders (RSJ) through 90º.

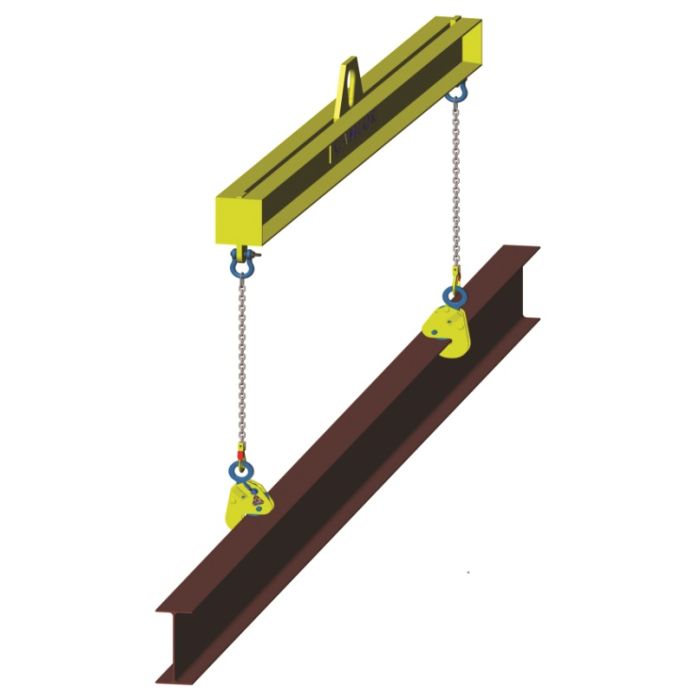

They can be used individually or for longer beams used in pairs in conjunction with a spreader beam.
The clamps are attached to the horizontal flange of the girder and locked in place by the jaw locking lever. Once lifted the girder will move simply allow the operator to turn through 90 degrees.
These clamps are ideal products were steel beams or girders can be found such as fabrication workshops, construction sites, steel stockholders and crane manufacturers.
Light weight in construction, up to a maximum self weight of 14 kg per clamp, therefore providing users with a portable girder lifting clamp.
A Jaw capacity of up to 32 mm, provides sufficient clearance for ease of loading the beams. The girders are locked in position within the jaws by the "locking lever".
For this clamp to operate safely and secure the load a minimum load of 10% of the lifting clamp WLL is required.
As with all our Camlok equipment they have been designed with maintenance and service in mind, and therefore spare parts are available from U.K. Stocks and repair work can be carried out by a suitably trained and component person.
