Adjustable Horizontal Lifting Steel Plate Clamp

Ratchet Mechanism to Offer Larger Jaw Capacity

Model:  ACH

Manufacturer: Camlok (Designed and Made in Great Britain)

Capacities: 1300 kg, 3300 kg and 6650 kg (Per Pair Of Clamps)

Jaw opening: 0 to 150 mm and 0 to 250 mm (L Series)

Specification and Pricing Details are per pair, these lifting clamps are to be used in pairs.



Product Overview

The Camlok ACH horizontal lifting plate clamps offer superb flexibility because of the large adjustable jaw opening. The jaw is adjusted using a simple and effective ratchet mechanism.  Offering the user a maximum load of 6.65 tonnes per pair of clamps.

These clamps are to be used in pairs and are especially suited to the transportation of large plate bundles up to 250mm thick.

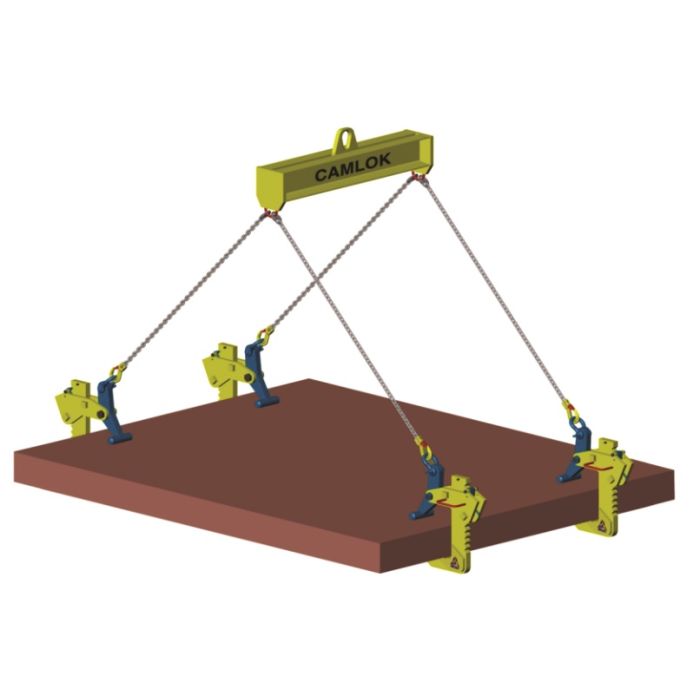

For larger surface area loads, multiple pairs can be used in conjunction with a spreader beam to make safer handling.

A simple and effective design especially the large capacity jaw opening.

This series of lifting clamp is not suited for thin plates that have a tendency to sag during transport.

The angle from the vertical must not exceed 45°.

Chain slings and shackles are sold separately.

As with all our Camlok equipment they have been designed with maintenance and service in mind, and therefore spare parts are available from U.K. Stocks, and repair work can be carried out by a suitably trained and component person.
