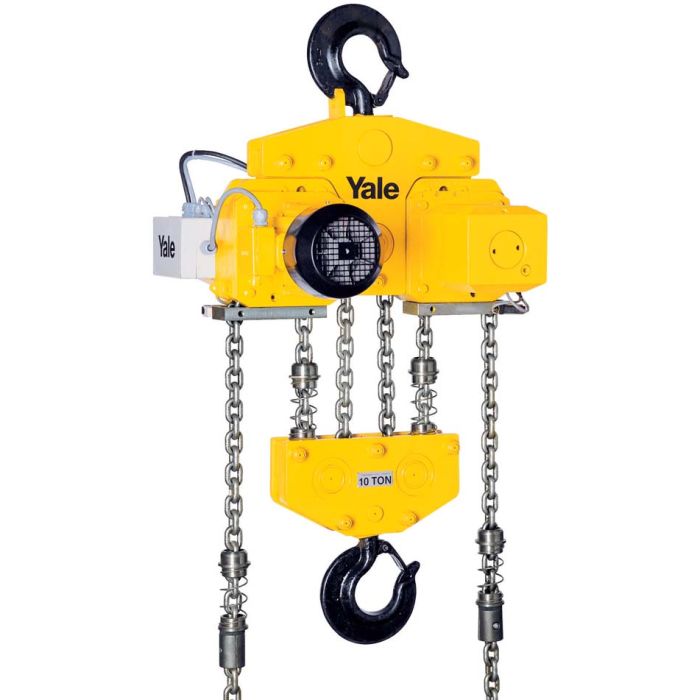

Yale Electric Hoist - CPE Model

Capacities - 1,600 kg to 10,000 kg Swl



The CPE series is a range of high quality electric powered chain hoists for professional applications. They are highly efficient and engineered for a long working life.

The Yale CPE electric chain hoists are composed of three main component parts which makes service easy and inexpensive.

Features

• Classification: 1 Am/M4, except models CPE(F) 20-8, CPE(F) 30-5 and CPE(F) 40-4 classif ication 1 Bm/M3. As required the model CPE (with appropriate changes to lifting capacity resp. duty cycle) can also be re-classified.

• Direct control or 42 V low volt age control.

• 2 year warranty (excluding wear parts) as well as a lifetime lubricated gear box.

• Motor fitted with a bimetallic thermal protection (useable in connection with low voltage control).

• Duty cycle 40% at one operating speed.

• The heavy duty squirrel cage motor has an adjustable spring pressure brake that holds the load secure evenin the event of a power failure.

• Standard operating volt age: Euro-voltage 400 Volt, 3-phase, 50 Hz.

• Motor protected to IP 54, insulation class F, against ingress of dust and splashing. (acc. to VDE 0530)

• Encapsulated pendant control protected to IP 65, against ingress of dust and water jets.

• Up to 3000 kg only one chain fall, leading to a low overall height.

• The 5-pocket load chain sheave, manufactured from wear resistant case hardening steel, is matched perfectly to the load chain to guarantee smooth and precise chain motion.

• The standard, oil bath lubricated planetary gearbox is particularly smooth running.

• Drop forged suspension and load hooks are made from non-aging, high tensile steel and fitted with robust safety latches.

• The standard case hardened and zinc-plated link chain is matched perfectly to the load chain to guarantee smooth and precise chain motion. All requirements of national and international standards and regulations are fulfilled.

Options

• Stainless steel load chain.

• Suspension hook rotated 90°.

• Flexible chain container.

• Other operating voltages.

• Limit switches for highest and lowest hook positions (in combination with low voltage control).

• Motor with stainless steel brake.

• Radio remote control

• Control for synchronized operation of several hoists.

• Manual and electric trolleys.

• Integrated low headroom trolley.

• Connection to festooned cable systems.
